Welcome to CubieTruck world! A series of open ARM miniPC!

Product Image Cubieboard 1GB ARM Development Board Cortex-A8 Mini PC
Sale

Cubieboard 1GB ARM Development Board Cortex-A8 Mini PC

$52.90 $79.00


In order to cooperate with our distributors, we are not selling our products on this website for retail customers. All the items on this website have suggested retail prices. If your order is greater than 50 pieces or $1,000 USD, please contact us directly. We will provide our most competitive wholesale price to you, and the shipping turn around time will be in 3-5 business days.

    Overview

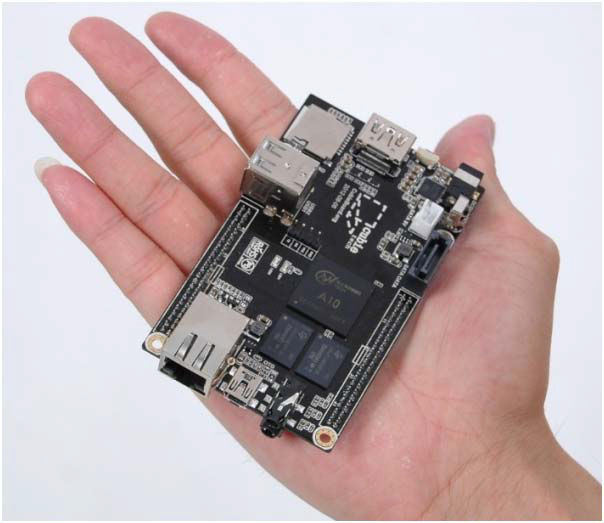

Cubieboard is mini pc development board, which is based on Allwinner A10 SoC, small size (10x6cm), hacker friendly, extendable and very low-cost. Compare with Raspberry Pi, it has higher performance, SATA supported and 96 extended interface.

If you plan to assemble a small computer, you can try using this small ARM platform cubieboard. It supports Ubuntu and other Linux distributions; you could use it like an ordinary computer operation. At the same time, the platform also supports Android 4.0 Ice Cream Sandwich system and has bulit-in IR sensor, can be used as "Android TV".


    Features

  • Processor
    • Allwinner A10
  • Features
    • 1GB DDR3@480MHz
    • HDMI 1080p Output
    • 10/100M Ethernet
    • 4Gb Nand Flash
    • 2 USB Host
    • 1 micro SD slot
    • 1 SATA
    • 1 IR
  • Others
    • 96-pin expansion pinheaders including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP...
    • Running Android, Ubuntu and other Linux distros. Pre-loaded Android 4.0.

Processor Features

  • CPU
    • ARM Cortex-A8
    • 32KB I-Cache
    • 32KB D-Cache
    • 256KB L2 Cache
  • GPU
    • ARM Mali-400
  • Video
    • UHD 2160P video decoding
    • 3D video decoding
    • Support various video decoding formats, including VP8, AVS, H. 264 MVC, VC-1, MPEG-1,2,4, etc
    • H.264 HP video encoding up to 1080p @ 30 fps or dual-channel 720p @ 30 fps
  • Display
    • Multi-channel HD display
    • Integrated HDMI 1.4
    • YPbPr, CVBS, VGA
    • Multiple LCD interfaces, including CPU, RGB, LVDS up to Full HD
  • Memory
    • 32-bit DDR2/DDR3 Memory capacity up to 16G bits
    • SLC/MLC/TLC/DDR NAND
      - 8 flash chips, 64-bit ECC
      - Memory capacity up to 64GB
      - Support NAND of 5xnm, 4xnm, 3xnm, 2xnm, etc
      - Support NAND of Samsung, Toshiba, Hynix, etc
  • Boot Devices
    • NAND Flash
    • SPI NOR Flash
    • SD Card
    • USB




    Product Details

Package Include:
Standard cubieboard package, which includes
  • Main board x 1
  • DC to USB cable x 1
  • SATA cable(data + power) x 1





        Resource and useful links



    Official website: cubieboard.org

    Wike page: linux-sunxi.org/Cubieboard

    Hardware information:

    Getting started:
